LHDW Pilot Plants
NAME OF THE CLIENT: IOCL, FARIDABAD
Basic Features: -
- Operating Temperature: 450°C.
- Operating Pressure: 250 bar
- Catalyst Volume: 100ml
- Mode of Operation: Up flow, Downflow, in series, one reactor at a time.
- Control System: PC-PLC Controlled

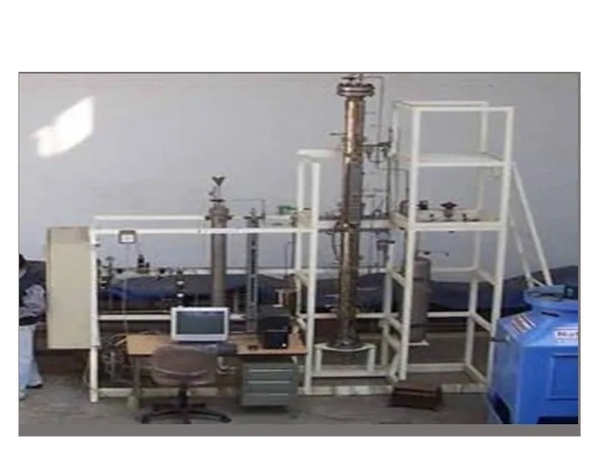

Bubble Column Unit
NAME OF THE CLIENT: IIT, DELHI
YEAR OF INSTALLATION: 2007
The objective of the Pilot Plant is to study comprehensively the Hydrodynamics and gas-liquid mass transfer of bubble column reactor.
Basic Features: -
- Slurry Bubble column Diameter 4 and height 300 cm.
- Operating Temperature 250°C.
- Operating Pressure 50 brag.
- Control System: PC-PLC Controlled
HCK Pilot Plant
We are leading Manufacturer and Supplier of HCK Pilot Plant.
NAME OF THE CLIENT: IOCL, FARIDABAD
YEAR OF INSTALLATION:2004
Basic Features: -
- Operating Temperature:450°C
- Operating Pressure:250 brag
- Catalyst Volume:100ml
- Mode of Operation: Up flow, Downflow, in series, one reactor at a time.
- Control System: PC-PLC Controlled
Bio-Diesel Micro Reactor
We are leading Manufacturer and Supplier of Bench Scale Reactor
NAME OF THE CLIENT: SABIC, Bengaluru
YEAR OF INSTALLATION:2008
It is general reactor system for carrying out catalyst testing at higher level (100gm of catalyst) compared to regular lab scale (5gm of catalyst). This is first level in the scaling up of catalyst process developed in lab.
Basic Features: -
- Operating Temperature: 650°C
- Operating Pressure 100 Bar
- Reactor Volume: 100cc
- Flow through Reactor: Up flow and Down flow
- Control System: PC-PLC Controlled
Multi-Purpose Micro Reactor Unit
NAME OF THE CLIENT: IOCL Research & Development Centre, Faridabad
YEAR OF INSTALLATION: 2023
The Multipurpose Micro-Reactor unit will be used for data generation in the area of light naphtha isomerization, C4 hydrocarbon dimerization, etherification processes and other explorative studies involving light hydrocarbon streams (LPG and naphtha range) as feed.
Basic Features: -
- Max. operating reactor pressure: 100 barg
- Max. operating reactor temperature: 600 °C
- Maximum gas flowrate: 0 – 100 SLPH Hydrogen
- 0 – 50 SLPH: Nitrogen
- 0 – 50 SLPH: AIR
- Naphtha liquid flow rate: 0.01 – 5 & 0.12 – 25 ml/min
- C4 liquid flow rate: 0.001 – 150 & 0.001 – 300 ml/min
- Control System: PC-PLC Controlled
Kinetic Reactor for Heterogeneous Reactions
We are leading Manufacturer and Supplier of HCK Pilot Plant.
NAME OF THE CLIENT: IOCL, FARIDABAD
YEAR OF INSTALLATION:2004
Basic Features: -
- Operating Temperature: 450°C
- Operating Pressure: 250 bar
- Catalyst Volume: 100ml
- Mode of Operation: Up flow, Downflow, in series, one reactor at a time.
- Control System: PC-PLC Controlled.
High Pressure Micro Reactor
- We are leading manufacturer and supplier of Micro Catalytic Unit in all over India.
- Its Use is Recommended by the General Conference on Weights and Measures and Other International Organizations.
- It Replaces the non- SI Enzyme Unit.
- Enzyme Units are, however, still more commonly used than the Katal in Practice at Present, especially in Biochemistry.
- The Katal is not Used to express the Rate of a Reaction; That is Expressed in Units of Concentration per Second (or moles per liter per second). Rather, It is Used to Express Catalytic Activity which is a Property of the Catalyst.
- The Katal is Invariant of the Measurement Procedure, But the Numerical Quantity value is not and depends on the Experimental Conditions.
Bench Scale Catalytic Testing Unit
We are the Manufacture and Supplier of Bench Scale Catalytic Testing Unit.
NAME OF THE CLIENT: BPCL, Greater Noida
YEAR OF INSTALLATION: 2013
Research equipment to generate Industry relevant data on conversion of feed and get desire product by optimizing the operating condition in the range of designed conditions.
Basic Features: -
- Feed: Jatropha Oil
- Catalyst Capacity:50gm
- Max Operating Temperature: 650°C
- Max Operating Pressure: 150 brag
- Reactors used are Autoclave reactors.
- Control System: PC-PLC Controlled
Steam Deactivation Unit
We are leading Manufacturer and Supplier of Steam Deactivation Unit.
NAME OF THE CLIENT: HPCL, Bengaluru
YEAR OF INSTALLATION: 2013
Designed to decrease the activity of FCC Catalyst by Processing it with Steam on Certain Temperature and Pressure.
Basic Features: -
- SDU allows Collecting Industrial Relevant and Reliable Data.
- Catalyst Capacity of Reactor: 3kg.
- Max. Operating Temperature:925°C
- Max. Operating Pressure: ATM.
- Control System: PC-PLC Controlled.
